  • AISI 4130 Tube

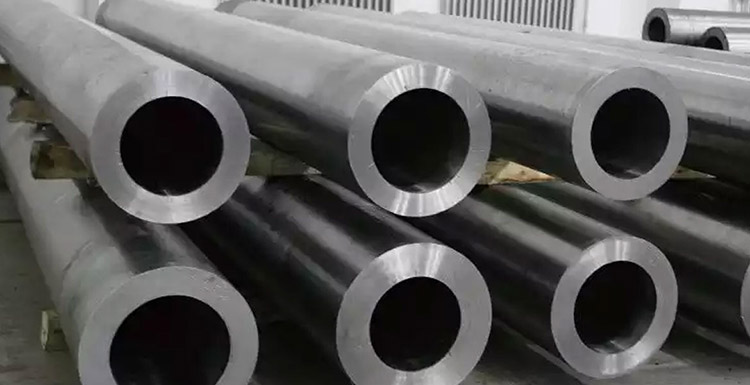

Alloy 4130 Steel Seamless Round Tubing sizes available from 6 -20 NPS

AISI 4130 Pipe is made up of chromium molybdenum added low alloy steel. The material is a carbon steel and can be heat treated to strengthen it further. The Alloy 4130 Steel Seamless Round Tubing comes under ASTM, ASME and API specifications with dimensions ranging accordingly. The Astm A519 Grade 4130 Pipe suppliers produce these pipes and tubes in sizes 4mm to 219mm in outer diameters with wall thicknesses ranging from 0.5mm to 20mm. The pipe lengths can vary as single random, double random and custom cut to length sizes up to 13500mm. The production can be seamless, erw, welded or fabricated. The 4130 Alloy Steel Seamless Pipe has less absolute roughness and has high dimensional accuracy. The pipes can be round or hydraulic in form. The material has nickel, carbon, molybdenum, manganese, silicon, sulfur, phosphorus and chromium in the composition. This composition provides the 4130 Chromoly Steel Pipe with 460MPa minimum yield strength and 560 MPa minimum tensile strength with 20% elongation at break. As a leading AISI 4130 Steel Pipe Manufacturer we produce the pipes for high temperature services. The pipes could be cast in ingots or strand cast. The pipes are coated with a film of oil before carrying out shaping operations. The AISI 4130 Steel Tube is used in oil and gas, petroleum, petrochemical, pharmaceutical, food processing, power generation and other general purpose services as well.

ASTM A519 Gr 4130 Specification

Specifications ASTM A29 and ASME SA29
Dimensions ASTM, API and ASME
Size in MM 4 to 219 Wall Thckness = 0.5 to 20
Specialized in Large Diameter Size
Length in MM 13500
Type Seamless / Welded / ERW / Fabricated Supplier and Manufacturer
Form Hydraulic, Round
Length Double Random, Single Random, Cut Length
End Beveled End, Plain End, Treaded
Tube Marking All Tube are marked as follows: Supplier or Manufacturer’s Name, Standard, Grade, OD, Thickness, Length, Heat Number


ASTM A519 Grade 4130 Equivalent

Std UNS werkstoff no European Standards Japanese Industrial Standards British Standards GOST AFNOR
AISI 4130 G41300 1.7218 25CrMo4 JIS G4105 BS 970 – –


ASTM A519 Gr 4130 Properties

AISI 4130 Nickel Carbon Molybdenum Manganese Silicon Iron Copper Sulfur Phosphorous Chromium
0.50 Maximum 0.28 To 0.33 0.15 To 0.25 0.40 To 0.60 0.15 To 0.35 97.3 To 98.22 – 0.025 Maximum 0.035 Maximum 0.80 To 1.10


Astm A322 Grade 4130 Mechanical Properties

Density Yield Strength Elongation Tensile Strength Melting Point
0.28 460 20 % 560 2580


AISI 4130 75k Alloy Steel Weight

Nominal Pipe Size Outer Diameter Wall Thickness Inner Diameter Weight per Foot Standard to XXHY Schedule Section Modulus Gallon Capacity Per Linear Foot
3/4 1.05 0.113 0.824 1.13 STD 40 .0705 .0277
0.154 0.742 1.48 XHY 80 .0853 .0225
0.219 0.612 1.95 160 .1006 .0153
0.308 0.434 2.44 XXHY .1103 .0077
1/2 0.84 0.109 0.622 0.85 STD 40 .0407 .0158
0.147 0.546 1.09 XHY 80 .0478 .0122
0.188 0.464 1.31 160 .0528 .0088
0.294 0.252 1.72 XXHY .0577 .0026
1 1.315 0.133 1.049 1.68 STD 40 .1328 .0449
0.179 0.957 2.17 XHY 80 .1606 .0374
0.250 0.815 2.85 160 .1904 .0271
0.358 0.599 3.66 XXHY .2136 .0146
1 1/4 1.66 0.140 1.380 2.27 STD 40 .2346 .0777
0.191 1.278 3.00 XHY 80 .2913 .0666
0.250 1.160 3.77 160 .3421 .0549
0.382 0.896 5.22 .4110 .0328
2 2.375 0.109 2.157 2.64 10 .4205 .1898
0.154 2.067 3.66 STD 40 .5606 .1743
0.218 1.939 5.03 XHY 80 .7309 .1534
0.250 1.875 5.68 .8045 .1434
0.281 1.813 6.29 .8666 .1344
0.344 1.687 7.47 160 .9806 .1161
0.436 1.503 9.04 XXHY 1.1043 .0922
1 1/2 1.90 0.145 1.610 2.72 STD 40 .3262 .1058
0.200 1.500 3.63 XHY 80 .4118 .0918
0.281 1.338 4.86 160 .5079 .0730
0.400 1.100 6.41 .5977 .0494
2 1/2 2.875 0.120 2.635 3.53 10 .6870 .2833
0.203 2.469 5.80 STD. 40 1.0640 .2487
0.216 2.443 6.14 1.1169 .2435
0.250 2.375 7.02 1.2468 .2301
0.276 2.323 7.67 XHY 80 1.3386 .2202
0.375 2.125 10.02 160 1.6371 .1842
0.552 1.771 13.71 XXXHY 1.9971 .1280
3 1/2 4.0 0.120 3.760 4.98 10 1.3776 .5768
0.226 3.548 9.12 STD. 140 2.3939 .5136
0.250 3.500 10.02 2.6001 .4998
0.281 3.438 11.17 2.8562 .4821
0.318 3.364 12.52 XHY 80 3.1400 .4617
0.636 2..728 22.87 XXHY 4.8795 .3085
3 3.50 0.120 3.260 4.34 1.0411 .4336
0.156 3.188 5.58 1.3122 .4147
0.172 3.156 6.12 1.4265 .4064
0.188 3.124 6.66 1.5342 .3984
0.216 3.068 7.58 STD. 40 1.7241 .3840
0.250 3.000 8.69 1.9372 .3672
0.281 2.938 9.67 2.1207 .3521
0.300 2.900 10.26 XHY 80 2.2253 .3431
0.438 2.624 14.34 160 2.8774 .2811
0.600 2.300 18.6 XXHY 3.4243 .2158
4 4.5 0.120 4.260 5.62 10 1.7612 .7404
0.156 4.188 7.24 2.2354 .7156
0.188 4.124 8.67 2.6296 .6942
0.203 4.094 9.32 2.8173 .6838
0.219 4.062 10.02 3.0184 .6725
0.237 4.026 10.80 STD. 40 3.2145 .6613
0.250 4.000 11.36 3.3611 .6528
0.281 3.938 12.67 60 3.7021 .6326
0.312 3.876 13.97 4.0273 .6126
0.337 3.826 15.00 XHY 80 4.2713 .5972
0.438 3.624 19.02 120 5.1790 .5361
0.531 3.438 22.53 160 5.8997 .4822
0.674 3.152 27.57 XXHY 6.7927 .4054
6 6.625 0.109 6.407 7.59 5 3.5769 1.6748
0.134 6.357 9.30 10 4.3475 1.6488
0.156 6.313 10.79 5.0107 1.6260
0.188 6.249 12.94 5.9351 1.5937
0.203 6.219 13.94 6.3804 1.5780
0.219 6.187 15.00 6.8261 1.5620
0.250 6.125 17.04 7.6905 1.5306
0.280 6.065 18.99 STD. 40 8.4958 1.5008
0.312 6.001 21.06 9.3416 1.4688
0.344 5.937 23.10 10.111 1.4391
0.375 5.875 25.05 10.893 1.4082
0.432 5.761 28.60 XHY 80 12.224 1.3541
0.500 5.625 32.74 13.711 1.2909
0.562 5.501 36.43 120 14.9806 1.2346
0.625 5.375 40.09 16.1821 1.1787
0.719 5.187 45.39 160 17.8243 1.0977
0.864 4.897 53.21 XXHY 20.025 .9784
1.000 4.625 60.13 21.7719 .8727
1.125 4.375 66.14 23.1237 .7809
5 5.563 0.188 5.187 10.80 4.1161 1.0979
0.219 5.125 12.51 4.7279 1.0716
0.258 5.047 14.63 STD. 40 5.4500 1.0391
0.281 5.001 15.87 5.8644 1.0204
0.312 4.939 17.51 6.4074 .99647
0.344 4.875 19.19 6.9358 .9696
0.375 4.813 20.80 XHY 80 7.4300 .9449
0.500 4.563 27.06 120 9.2534 .8495
0.625 4.313 32.99 160 10.7976 .7590
0.750 4.063 38.59 XXHY 12.0954 .6734


ASTM 4130 Steel Properties

Properties Metric Imperial
Melting point 1432°C 2610°F
Density 7.85 Gram per CM 0.284 Lbs Per Inch


Best price of Astm A519 Grade 4130 Pipe ex Mumbai, India. Check 4130 Chromoly Steel Pipes Sizes

Price List of UNS G41300 Seamless Round Tubing

Size" MSL Make ISMT make JSL Make
1/2"
1,402.94
1,395.15
1,410.74
3/4"
1,169.12
1,161.32
1,176.91
1"
1,013.24
1,005.44
1,021.03
1.25"
966.47
958.68
974.26
1.5"
857.35
849.56
865.15


Astm A519 Grade 4130 Pipe Thickness Chart

Nominal Pipe Size Outer Diameter Wall Thickness Inner Diameter Weight per Foot Standard to XXHY Schedule Section Modulus Gallon Capacity Per Linear Foot
3/4 1.05 0.113 0.824 1.13 STD 40 .0705 .0277
0.154 0.742 1.48 XHY 80 .0853 .0225
0.219 0.612 1.95 160 .1006 .0153
0.308 0.434 2.44 XXHY .1103 .0077
1/2 0.84 0.109 0.622 0.85 STD 40 .0407 .0158
0.147 0.546 1.09 XHY 80 .0478 .0122
0.188 0.464 1.31 160 .0528 .0088
0.294 0.252 1.72 XXHY .0577 .0026
1 1.315 0.133 1.049 1.68 STD 40 .1328 .0449
0.179 0.957 2.17 XHY 80 .1606 .0374
0.250 0.815 2.85 160 .1904 .0271
0.358 0.599 3.66 XXHY .2136 .0146
1 1/4 1.66 0.140 1.380 2.27 STD 40 .2346 .0777
0.191 1.278 3.00 XHY 80 .2913 .0666
0.250 1.160 3.77 160 .3421 .0549
0.382 0.896 5.22 .4110 .0328
2 2.375 0.109 2.157 2.64 10 .4205 .1898
0.154 2.067 3.66 STD 40 .5606 .1743
0.218 1.939 5.03 XHY 80 .7309 .1534
0.250 1.875 5.68 .8045 .1434
0.281 1.813 6.29 .8666 .1344
0.344 1.687 7.47 160 .9806 .1161
0.436 1.503 9.04 XXHY 1.1043 .0922
1 1/2 1.90 0.145 1.610 2.72 STD 40 .3262 .1058
0.200 1.500 3.63 XHY 80 .4118 .0918
0.281 1.338 4.86 160 .5079 .0730
0.400 1.100 6.41 .5977 .0494
2 1/2 2.875 0.120 2.635 3.53 10 .6870 .2833
0.203 2.469 5.80 STD. 40 1.0640 .2487
0.216 2.443 6.14 1.1169 .2435
0.250 2.375 7.02 1.2468 .2301
0.276 2.323 7.67 XHY 80 1.3386 .2202
0.375 2.125 10.02 160 1.6371 .1842
0.552 1.771 13.71 XXXHY 1.9971 .1280
3 1/2 4.0 0.120 3.760 4.98 10 1.3776 .5768
0.226 3.548 9.12 STD. 140 2.3939 .5136
0.250 3.500 10.02 2.6001 .4998
0.281 3.438 11.17 2.8562 .4821
0.318 3.364 12.52 XHY 80 3.1400 .4617
0.636 2..728 22.87 XXHY 4.8795 .3085
3 3.50 0.120 3.260 4.34 1.0411 .4336
0.156 3.188 5.58 1.3122 .4147
0.172 3.156 6.12 1.4265 .4064
0.188 3.124 6.66 1.5342 .3984
0.216 3.068 7.58 STD. 40 1.7241 .3840
0.250 3.000 8.69 1.9372 .3672
0.281 2.938 9.67 2.1207 .3521
0.300 2.900 10.26 XHY 80 2.2253 .3431
0.438 2.624 14.34 160 2.8774 .2811
0.600 2.300 18.6 XXHY 3.4243 .2158
4 4.5 0.120 4.260 5.62 10 1.7612 .7404
0.156 4.188 7.24 2.2354 .7156
0.188 4.124 8.67 2.6296 .6942
0.203 4.094 9.32 2.8173 .6838
0.219 4.062 10.02 3.0184 .6725
0.237 4.026 10.80 STD. 40 3.2145 .6613
0.250 4.000 11.36 3.3611 .6528
0.281 3.938 12.67 60 3.7021 .6326
0.312 3.876 13.97 4.0273 .6126
0.337 3.826 15.00 XHY 80 4.2713 .5972
0.438 3.624 19.02 120 5.1790 .5361
0.531 3.438 22.53 160 5.8997 .4822
0.674 3.152 27.57 XXHY 6.7927 .4054
6 6.625 0.109 6.407 7.59 5 3.5769 1.6748
0.134 6.357 9.30 10 4.3475 1.6488
0.156 6.313 10.79 5.0107 1.6260
0.188 6.249 12.94 5.9351 1.5937
0.203 6.219 13.94 6.3804 1.5780
0.219 6.187 15.00 6.8261 1.5620
0.250 6.125 17.04 7.6905 1.5306
0.280 6.065 18.99 STD. 40 8.4958 1.5008
0.312 6.001 21.06 9.3416 1.4688
0.344 5.937 23.10 10.111 1.4391
0.375 5.875 25.05 10.893 1.4082
0.432 5.761 28.60 XHY 80 12.224 1.3541
0.500 5.625 32.74 13.711 1.2909
0.562 5.501 36.43 120 14.9806 1.2346
0.625 5.375 40.09 16.1821 1.1787
0.719 5.187 45.39 160 17.8243 1.0977
0.864 4.897 53.21 XXHY 20.025 .9784
1.000 4.625 60.13 21.7719 .8727
1.125 4.375 66.14 23.1237 .7809
5 5.563 0.188 5.187 10.80 4.1161 1.0979
0.219 5.125 12.51 4.7279 1.0716
0.258 5.047 14.63 STD. 40 5.4500 1.0391
0.281 5.001 15.87 5.8644 1.0204
0.312 4.939 17.51 6.4074 .99647
0.344 4.875 19.19 6.9358 .9696
0.375 4.813 20.80 XHY 80 7.4300 .9449
0.500 4.563 27.06 120 9.2534 .8495
0.625 4.313 32.99 160 10.7976 .7590
0.750 4.063 38.59 XXHY 12.0954 .6734


Chromoly Steel Tubing Suppliers is available in the following forms:

  • Tube / Hollow
  • Box Section
  • Aerofoil Section
  • Oval Section
  • Round

4130 Alloy Tubing Specifications:

  • MIL-S-18729
  • AMS 6346: Bar
  • AMS 6371: Tube
  • ASTM A322
  • AMS6345 Sheet & Plate
  • ASTM A331MIL-S-6758
  • AMS 6351: Sheet & Plate
  • AMS 6370: Bar
  • AISI 4130
  • AMS 6350: Sheet & Plate
  • MIL-T-67366

4130 Alloy Steel Seamless Pipe Outside Diameter

Nominal Pipe size Over Under
Inch Millimetre Inch Millimetre
Over 4 to 8 1/16 (0.062) 1.59 1/32 (0.031) 0.79
1/8 to 1 1/2 1/64 (0.015) 0.40 1/64 (0.015) 0.40
Over 8 to 12 3/32 (0.093) 2.38 1/32 (0.031) 0.79
Over 1 1/2 to 4 1/32 (0.031) 0.79 1/32 (0.031) 0.79
Over 12 [300] +/- 1% of the specified outside diameter

AISI 4130 60k Pipe Wall Thickness

Nominal Pipe Size Tolerance
Over Under
1/8 to 2 1/2 20.0% 12.5%
Above 2 1/2 15.0% 12.5%
Above 2 1/2 22.5% 12.5%
(t = Specified Wall Thickness; D = Specified Outside Diameter)

Size Chart of AISI 4130 Steel Pipe

Outer Diameter x Wall Thickness in MM Outer Diameter x Wall Thickness in MM Outer Diameter x Wall Thickness in MM
38.1 x 3.2 57.0 x 4.9 76.2 x 4.0
38.1 x 6.3 57.0 x 7.9 76.2 x 6.3
38.1 x 4.0 57.0 x 6.3 76.2 x 5.0
42.4 x 3.2 60.3 x 3.2 82.5 x 4.5
44.5 x 3.2 60.3 x 5.0 88.9 x 3.6
42.4 x 4.0 60.3 x 3.6 88.9 x 3.2
44.5 x 6.3 63.5 x 3.2 88.9 x 4.0
48.3 x 3.6 63.5 x 4.0 101.6 x 4.5
48.3 x 3.2 63.5 x 3.6 101.6 x 3.6
51.0 x 3.2 63.5 x 7.9 114.3 x 3.6
50.8 x 4.5 63.5 x 6.3 101.6 x 6.3
51.0 x 3.6 70.0 x 3.2 114.3 x 5.0
57.0 x 3.2 70.0 x 6.3 139.7 x 5.0
51.0 x 6.3 70.0 x 3.6 139.7 x 4.0
57.0 x 3.6 76.2 x 3.6 139.7 x 6.3
